Applicable VersionsNetSim StandardNetSim Pro


Applicable Releasesv13.2
v13.3
v14.0


The best bearer (Modulation and Coding) for each gNB-UE pair is computed separately for UL and DL.


The radio measurements log file can be enabled from the GUI starting from v13.3 onwards.

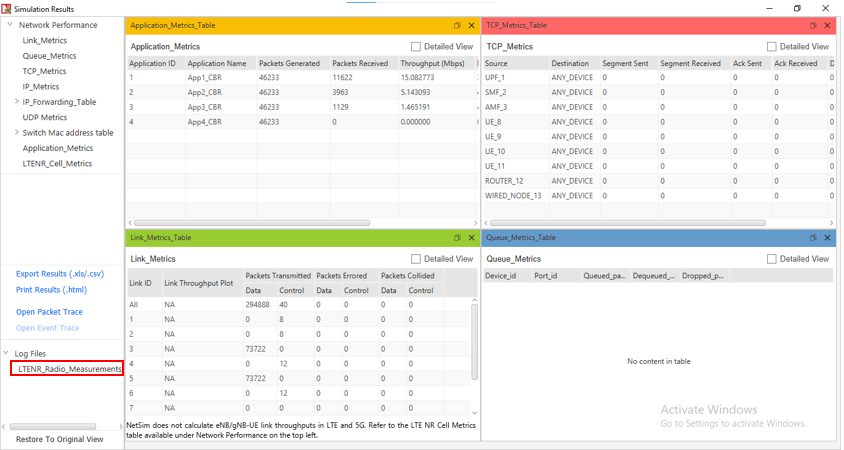

Enabling radio measurements in v13.2 requires a small code modification as explained in section 3.19 of 5GNR Technology Library manual. Post simulation open the LTENR_Radio_Measurement.log file available in the Results Window under Log files

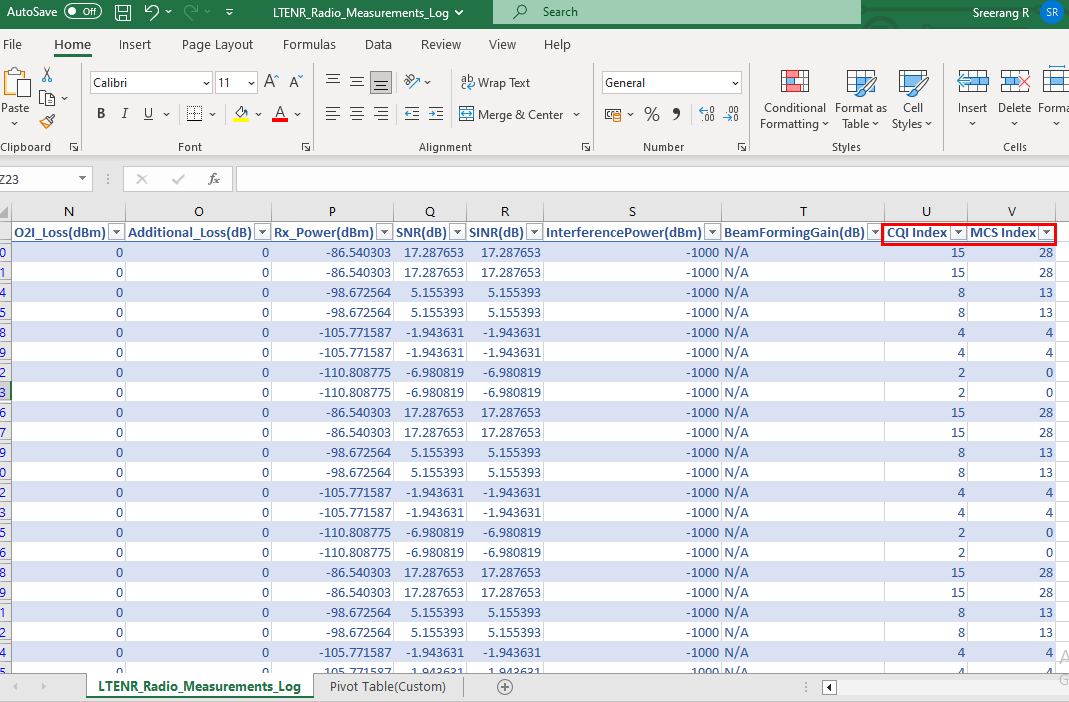

The following file will open. The MCS column is highlighted



Applicable Releasesv13.1

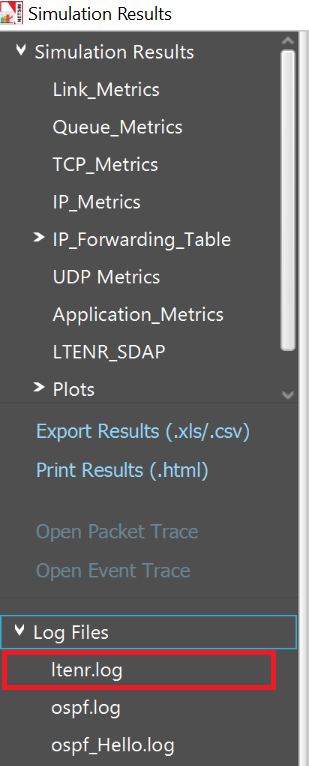

The MCS can be seen in the ltenr.log file available in the Results Window under Log files. Enabling this requires minor code modifications as explained in section 3.18 of 5GNR Technology library manual (v13.1).


This file may take a while to open since it is a large file. If you scroll down a bit you should see something similar to


Useful Links


1. NetSim 5G overview: https://tetcos.com/5g.html

2. NetSim 5G (v13.3) documentation: https://tetcos.com/help/v13.3/Technology-Libraries/5G-NR.html

3.How to obtain SINR, MCS and Throughput vs. Time for a 5G 1gNB-1UE scenario with a time varying radio channel in NetSim? https://support.tetcos.com/support/solutions/articles/14000141188-how-to-obtain-sinr-mcs-and-throughput-vs-time-for-a-5g-1gnb-1ue-scenario-with-a-time-varying-radio-
