Plots will be available only if users enable the Plots option before running the simulation.

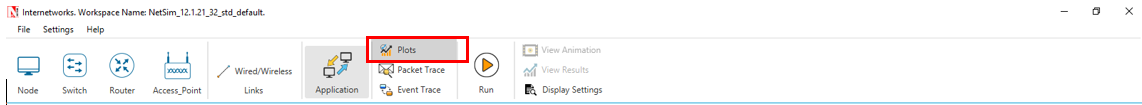

NetSim provides Plots feature using which users can obtain link throughput plots for Wired/Wireless links and application throughput plots for each application that is configured. Users will have to enable Plots before running the simulation using the Plots Icon as shown below:

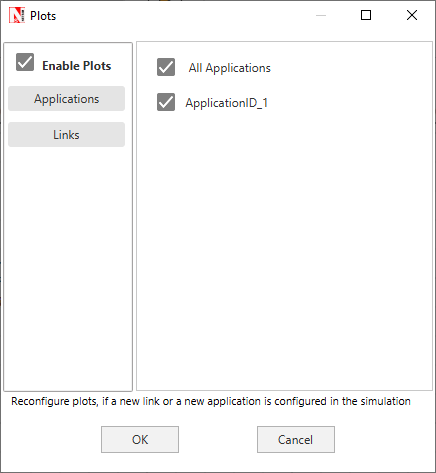

  • Upon clicking on the Plots icon Enable Plots window will appear as shown below:
  • By default all links and applications that are configured in the network will be selected. Users can choose to modify the selection to obtain plots only for specific links/applications. Click on ok after making changes if any to enable Plots.

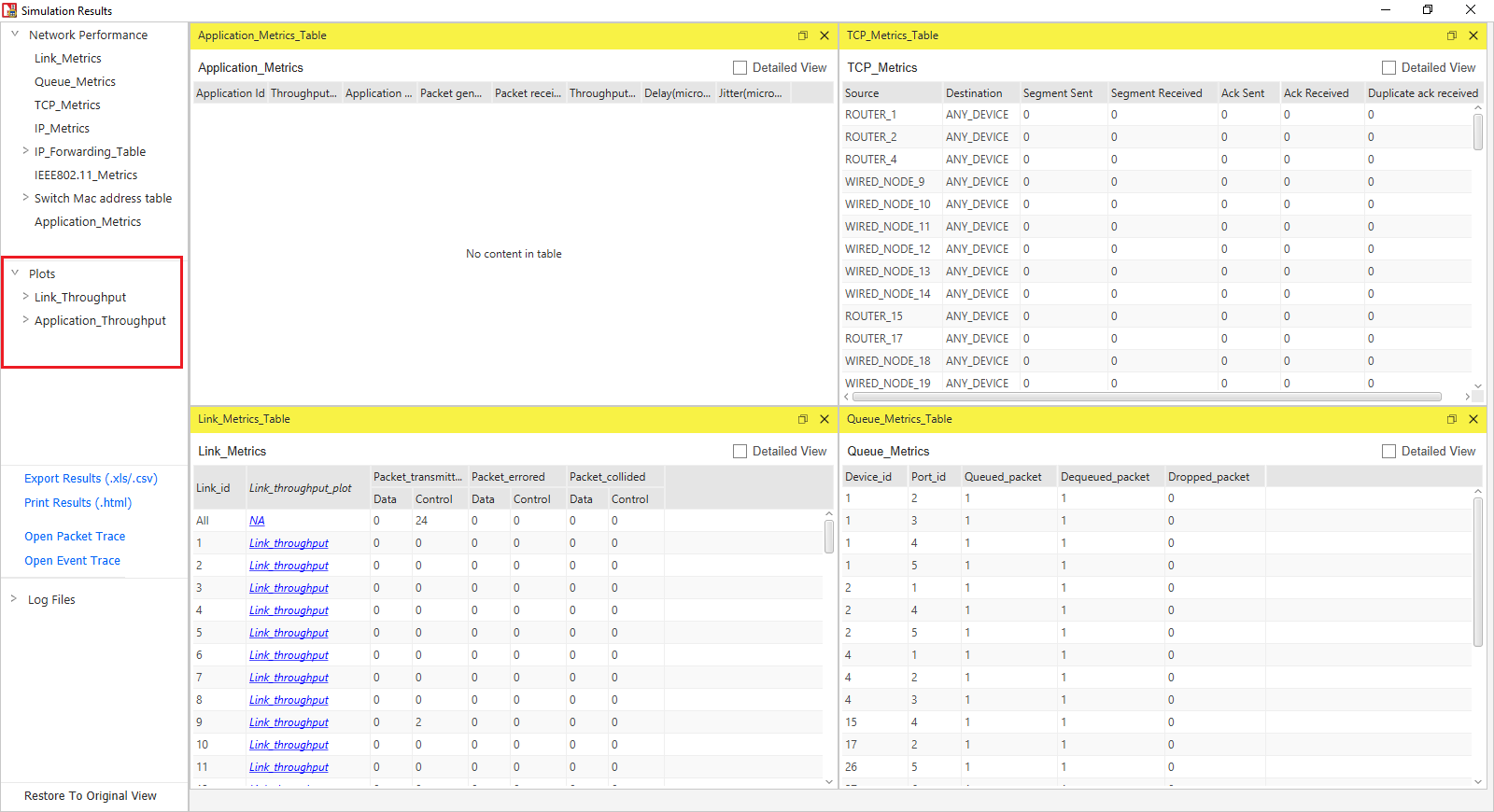

  • At simulation end NetSim Simulation Results window will provide a set of throughput plots related to Links and Applications that were configured in the network, listed under Plots as shown below:


Note:  Plots will not be generated for links and applications that were added after the plots option was enabled. In order to obtain plots for all applications and links in the network, Ensure that the checkboxes of all the applicaitons and links are enabled in the plots window.
